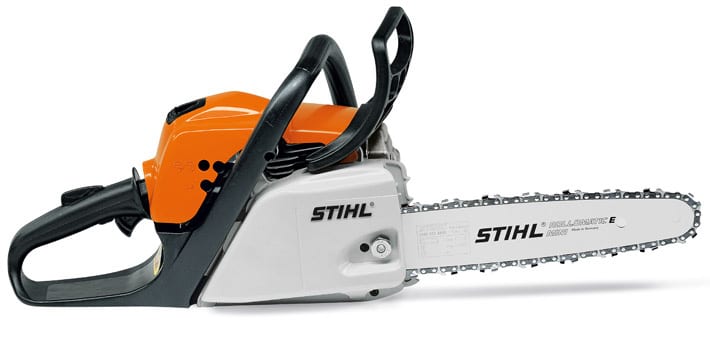

Chainsaw MS171 Occasional use Stihl 14″Chainsaw
Stihl MS 171 a new generation of occasional use saws, the STIHL MS 171 chainsaw features reduced-emission engine technology. Reducing fuel consumption by up to 20% compared to its predecessor, this innovative saw saves the user both time and money. Ideal for homeowners, the STIHL MS 171 chainsaw is good for cutting firewood, felling small trees or completing clean up tasks.
Stihl Chainsaw MS171
Standard features
Anti-vibration system
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.
Pre-separation air filtration system
STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.
Compensator
This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn’t need to be cleaned until an appreciable drop in power occurs.
Single-lever master control
All important functions such as start, choke, throttle and stop are operated via a single levers.
Side chain tensioner
The tensioning screw can be found on the side of the Stihl ms171 chainsaw through the sprocket cover. This removes the need for contact with the sharp saw chain.
Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system on the Stihl ms171 chainsaw can reduce bar oil consumption by up to 50%.
Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without the need for tools
Technical data MS 171 – 35 cm / 14″
| Technical data | Value |
|---|---|
| Displacement cm³ | 31.8 |
| Power output kW/bhp | 1.3/1.8 |
| Weight kg 1) | 4.3 |
| System weight kg 2) | 4.77 |
| Power-to-weight ratio kg/kW | 3.3 |
| Sound pressure level dB(A) 3) | 99 |
| Sound power level dB(A) 3) | 112 |
| Vibration values left/right m/s² 4) | 4/4.5 |
| STIHL Oilomatic saw chain pitch/type | 3/8″ P PMM3 |
| Oil pump | Not adjustable |
| Tank volume l | 0.27 |
| Chain pitch | 3/8″ P |
| Chain tensioning | Side chain tension |
| Sprocket – number of teeth | 6 |
| Filter | Long-term filter system / standard filter |
| Bumper spike | Plastic spike |
| Cylinder | 4 channel / chrome |
| Oil tank volume cm3 | 265 |
| Sprocket | Sprocket profile |
| Anti vibration system | AV System, steel spring |
| Filler cap | Tools |
| EPA Certified fuel consumption l/h | 0.73 |
| CO2 g/kWh | 1.072 |
| Handle type | Standard handle |
| Speed at maximum power Um | 10.000 |
| EPA Certified fuel consumption glh | 0.192 |
Extend your domestic warranty from 2 to 3 years with the purchase of 5 litres of STIHL MotoMix® fuel and this product.
